TOUCHSTONE

Know what's wrong with the equipment, on the controller itself.

TOUCHSTONE turns an equipment's points into fault-detection checks for Reliable Controls systems. The checks run in the controller, and a card in RC-Studio shows what's wrong, how long it has been wrong, and the steps to find it.

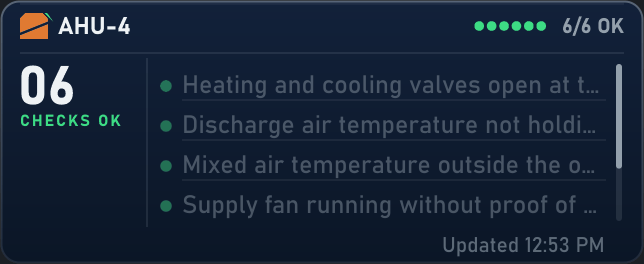

The TOUCHSTONE forge card playing its all-checks-OK animation
The forge card when every check is OK. The animation lasts about three seconds and stays off when motion is turned down.
The card

One card per piece of equipment. Five looks.

The same checks, shown the way each site wants: the TOUCHSTONE forge card, a light card with state tiles, a large-print high-contrast card, a neutral card, and a dealer card that carries the dealer's own name and colour.

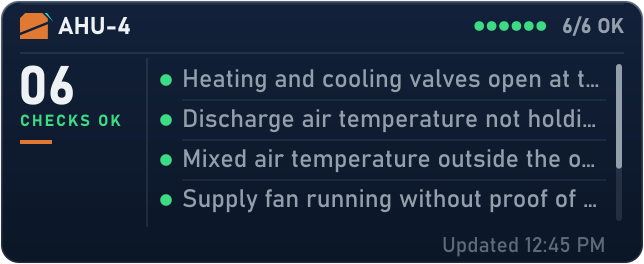

Forge card: AHU-4, 6 of 6 checks OK
Forge, all checks OK.

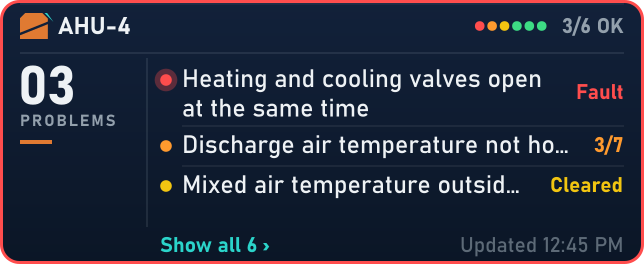

Forge card: AHU-4, 3 problems, one fault and one cleared
Forge, with problems: what's wrong, how bad, and what has cleared.

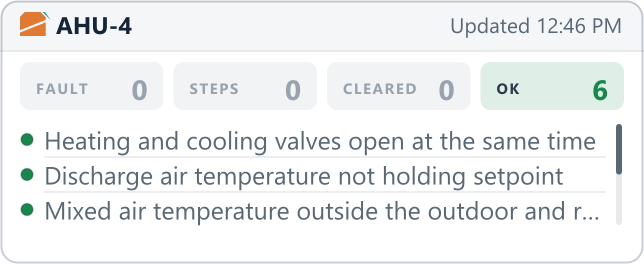

Light card with fault, steps, cleared and OK tiles
Light, with state tiles.

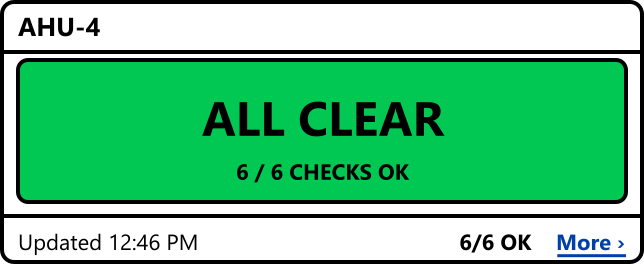

High-contrast card: ALL CLEAR, 6 of 6 checks OK
High contrast, for large print.

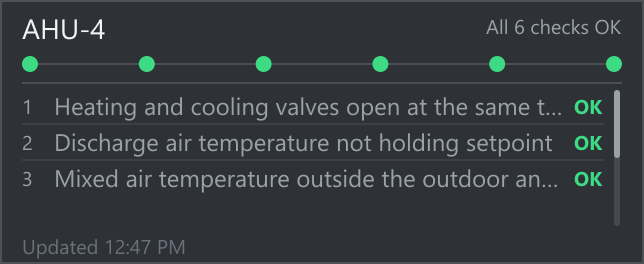

Neutral card with a dot strip, all 6 checks OK
Neutral, with a dot strip.

Rendered from the card files in a test sandbox. Example equipment.

On GUILDHALL

The dealer picks the checks. A lead signs them off.

TOUCHSTONE reads the controller's backups, proposes the checks that fit the equipment, and builds the card, the checks and a coverage document that lists what is checked and what isn't. Nothing is delivered until a lead on the dealer's team signs it off.

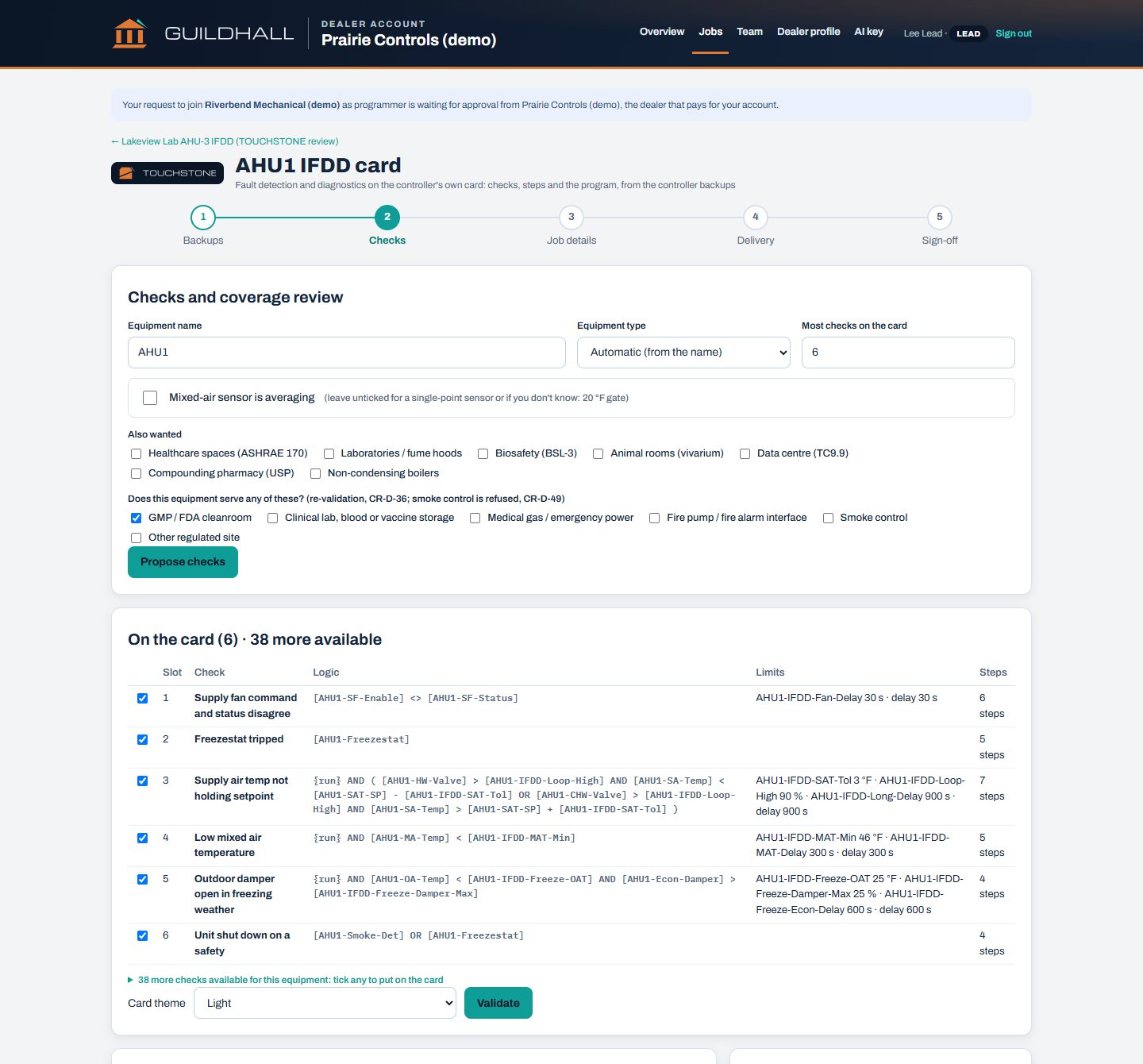

Checks and coverage review for an AHU on GUILDHALL
Choosing the checks for an air handler. Demo data.

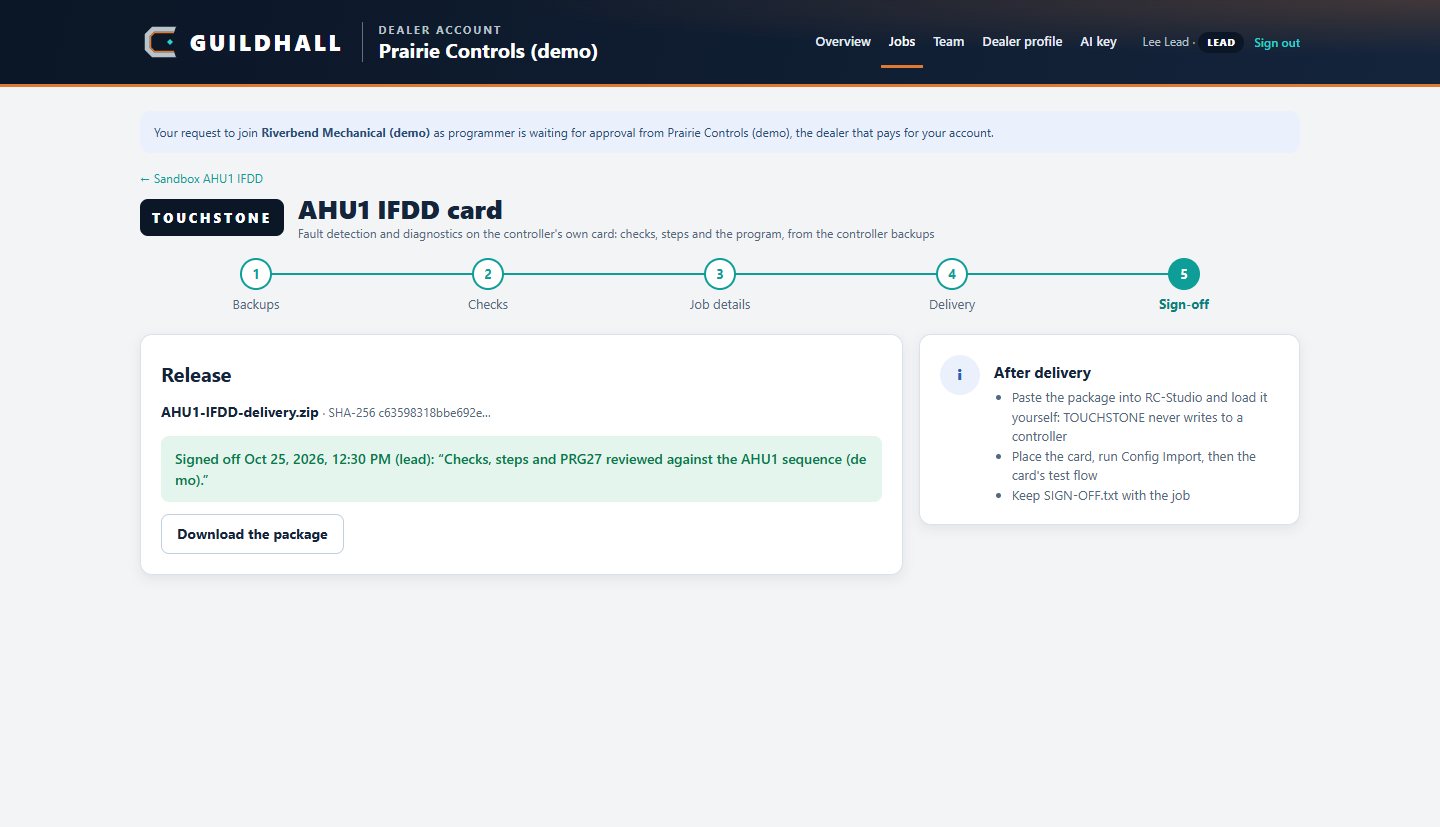

The release step with the lead's sign-off
The lead's sign-off before the package can be downloaded. Demo data.
Where it stands

Built and tested in software.

  • About 200 checks across eight equipment types, with automated tests on every build
  • Checks, card and coverage document built end to end on GUILDHALL
  • TOUCHSTONE never writes to a controller: a person loads the package
  • Smoke-control equipment is refused

Not yet loaded on a working controller. The card themes are rendered in a test sandbox and haven't been loaded in RC-Studio yet. First bench tests come next.

Talk to us

Interested in TOUCHSTONE for your Reliable Controls sites?

Contact details coming soonAll products
